- Built-in Server Program – Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
- Efficient Data Transfer – The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
- Reliable Power Supply – Operates seamlessly on a 24V external power source, ensuring consistent performance.
- Advanced Display Technology – Maintains the high-resolution e-paper display for crystal-clear instructions and minimized power consumption.
Package Includes

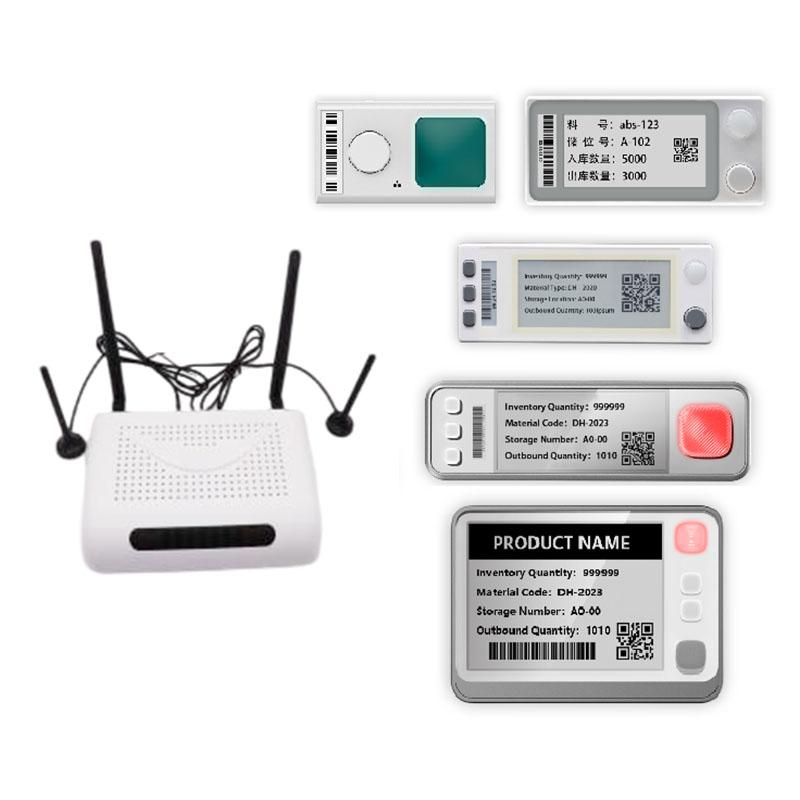

1) 1 × Pick to Light system built-in server base station SETP_Router_V1.5
2) 1 × No screen PTL system electroinc label SETP_Label_V1(External Power Supply)
3) 1 × 2.9 inch e-ink display electronic label for PTL system SETP_Label_V3(External Power Supply)
4) 1 × 2.13 inch e-ink display electronic label for PTL system SETP_Label_V13(External Power Supply)
5) 1 × 2.9 inch e-ink display electronic label for PTL system SETP_Label_V23(External Power Supply)
6) 1 × 4.2 inch e-ink display electronic label for PTL system SETP_Label_V24(*This PTL electronic label only has battery powered version.)
7) 1 × Power_DC24V: 24V power adapter
8) 1 × SETP_Wire_V1: Connect the DC power cable and the cascade cable - 30cm
9) 4 × SETP_Wire_V2: Optional cascade extension cable - 30cm
10) 3 × SETP_Wire_V3: Connect the Pick to Light electronic label to the cascade cable - 20cm, 2-Pin
11) 1 × SETP_Wire_V6: Connect the Pick to Light electroinc label to the cascade cable - 20cm, 4-Pin
1. Pick to Light System-SETP_Label_V1 Introduction
2. SETP_Label_V1 System Developer's Manual
3. Pick to Light System-SETP_Label_V3
4. SETP_Label_V3 System Developer's Manual
5. Pick to Light System-SETP_Label_V13
6. SETP_Label_V3 System Developer's Manual
7. Pick to Light System-SETP_Label_V23
8. SETP_Label_V23 System Developer's Manual
9. Pick to Light System-SETP_Label_V24
10. SETP_Label_V24 System Developer's Manual
11. SETP_Router_V1.5 Operate Steps
12. Pick to Light Operation Manual
| Product Model | SETP_Router_V1.5 | Network | 1 |
|---|---|---|---|
| The Antenna | 2 | Communication Mode | 868M, RJ45 |
| Power Supply | DC 12V 1A or POE | Dimension(cm) | 21 × 14 × 4.3 |
| Operating System | linux | Working Temperature | -10~70℃ |
| Wireless Distance | Radius 20~30m | Software Update | Yes |
| Number of Pick to Light Labels | ＞10000 | Server | Built in: Webserver: Tomcat Server System: JAVA Database: Mysql |
| Access | Web access | Service Interface Protocol | Http, Data format: Json |
